Most mini excavator won't start problems are actually quick fixes - dead batteries, safety switch issues, fuel clogs, or starter problems that you can diagnose and solve yourself. The key is troubleshooting systematically instead of panicking. When your mini excavator won't start or isn't working as it should, the difference between a minor inconvenience and costly downtime often comes down to knowing what to check first.
Like all heavy equipment, however, mini excavators need to be properly maintained in order to keep them operating safely and efficiently. The good performance and long life of a mini excavator are significantly influenced by maintenance. Regular care can prevent huge breakdowns, save repair costs, and ensure safety at work.
Understanding Your Machine's Warning Signs
Before diving into specific problems, recognize what your mini excavator is telling you. Machines communicate through symptoms – unusual noises, sluggish performance, warning lights, or complete failure to operate. These aren't random occurrences; they're clues pointing to specific systems that need attention.
Don't guess—consult your machine-specific operator manual first.. Carefully read and comprehend the operator's manual from the manufacturer, so you understand basic parts, operating controls as well as maintenance procedures. Whenever there's any problem, consult this manual – it provides details about your model specifically.
Quick Diagnostic Approach: Where to Start
When something goes wrong, panic won't help. Instead, follow a systematic approach:
First 30 Seconds: What exactly happened? Did the machine suddenly stop, gradually lose power, or refuse to start? Was there a noise, smoke, or unusual smell?
Next 2 Minutes: Check the obvious. Fuel level. Hydraulic oil level. Any visible leaks underneath. Warning lights on the dashboard. Sometimes the simplest explanation is the correct one.
Next 5 Minutes: If nothing obvious appears, think about what you were doing when the problem started. Were you digging hard material? Working on a slope? Had the machine been running hot?
This mental framework saves hours of random checking. You're building a case, not guessing wildly.
Starting Problems: The Most Common Complaint
Nothing's more frustrating than a machine that won't fire up. Whether your mini digger turns over but won't start or your mini excavator won't turn over at all, there's a troubleshooting process that'll get you back to moving dirt in no time.
Battery and Electrical System
This is the big one - dead or disconnected batteries account for about 60% of all mini excavators not starting. And it's not always what you think. Check battery charge first. A voltage reading below 12.4V usually means trouble. Besides battery charge, check for loose or corroded wiring connections, blown fuses, and proper operation of the starter motor and solenoid.
There may be some white substance on the battery connectors. This can either be lead sulfate or anhydrous copper sulfate. If that is the case, disconnect that battery and clean both terminals. Clean corroded terminals with a wire brush. Tighten loose connections. Sometimes it's that simple.
Loud noises without startup generally indicate starter motor issues. Troubleshoot the starter, checking battery charge, electrical connections, starter relay, and motor gear engagement. The first step is to try again, this time paying attention to any clicking sounds as you twist the key.
Safety Switches: The Hidden Culprits
Modern mini excavators have multiple safety switches designed to prevent accidents. There are a large number of safety features built into mini excavators, especially the 6th, 7th, and 8th generation mini excavators. However, sometimes, these safety switches might interfere and prevent the machine from starting.
If your engine cranks but won't fire up, or if you get power but nothing happens when you turn the key, safety switches are highly likely to be the culprit. Most machines have a green flashing light that indicates the seatbelt status - if it's blinking, that's your problem right there!
Some mini excavator units are equipped with a seat safety switch. It's important to check under the seat; if one is present, ensure that the switch is properly connected and that there are no broken wires.
Check these locations:
- Seat sensor (must detect operator weight)
- Control lever positions (should be in neutral)
- Hydraulic lockout switch
- Track lock position
- Emergency stop button (must be in the up position)
The emergency stop button, also known as a kill switch, is situated on your right on the control panel, close to your hip. Please note that the digger engine will turn over with the emergency stop button in the down position but won't start.
Battery Isolator Switch (battery cut-off switch) must be in the on position. An indicator that the isolator switch is off is when you have no electrically powered functions (e.g. horn, fuel fill level, dashboard display, etc., don't work).
One disconnected wire can disable the entire starting circuit. Test each switch by bypassing it temporarily (only for diagnostic purposes – reconnect for actual operation).
Fuel System Issues
If your mini digger turns over but won't start, the fuel delivery system is the prime suspect. Mini excavator won't start problems caused by fuel issues are especially common if your machine sits outside or hasn't been used for a while. Contaminated fuel, clogged filters, and blocked lines can all stop your engine cold.
Mini excavators left in the open are prone to fuel blockages and blocked supply valves. You could have a pinched or closed O-ring, or you could have accidentally bumped into a shutdown valve. Water in fuel is particularly nasty in cold weather. If you leave your excavator outside overnight, condensation can cause water to build up in the primary fuel filters. Drain it when indicated or it can lead to corrosion and damage.
Check fuel quality first. Old fuel (over 3 months) loses combustibility. Drain and replace if needed. Pull the fuel line near the filter and check for adequate flow. Then inspect filters – a clogged filter starves the engine of fuel. Replace filters every 500 hours or annually, whichever comes first.
Hydraulic System Failures
When hydraulic problems strike, your machine becomes a very expensive paperweight. The hydraulic system is like the excavator's lifeblood. Problems here can greatly affect how it works. Your mini excavator's work tools do the work — so don't overlook them in your daily inspection.
Low Power or Sluggish Operation
Modern day excavators come in many shapes and sizes, with most now fitted with more than one hydraulic pump, along with various system relief valves, service relief valves and priority valves to make the excavator run more smoothly. Generally, there are two main hydraulic pumps, one for each of the track motors and possibly a smaller displacement pump for the pilot circuit.
Check your oil level. Start with troubleshooting by verifying the levels of hydraulic fluid. You can do this through the dipstick or sight glass indicator. If it's low, add more using fluids that are approved for such systems. Make sure it's at the full mark on your dipstick or sight glass. Low oil is often the simplest cause of problems.
Whenever there are slow hydraulics and reduced digging power, it typically indicates an issue with the pump flow or a sticking or malfunctioning relief valve in the main control valve. The first signs of a problem will show when an excavator tracks to one side or some of the functions are slow, while others are working normally.
If all the functions are slow then this might be a sign that the power unit has a fault, or the drive coupling is worn and slipping. First check the power unit. Is the engine struggling? Do the revs of the engine increase under load or do they die off as though the engine is struggling to increase its power band? Basically, if the engine is not running correctly or in need of a service, then it cannot provide the necessary power for the hydraulic pumps to supply the flow to run the system.
Next comes temperature. When oil temperatures rise above 180°F (82°C), protection starts breaking down. Watch for these warning signs from your mini excavator: Sluggish operation, especially during precision work. Hydraulic fluid works best between 50°C and 80°C. Performance can sink by up to 35% as fluid temperatures rise from 60°C to 100°C.
If possible, reduce your work load temporarily. This gives your system time to cool down before damage occurs. Plan heavier hydraulic tasks for cooler times of day, and position the machine so prevailing winds or open space can assist with airflow.
Leaks and Contamination
Walk around the hydraulic cylinders and check the rods and seals. Inspect the linkage to ensure there are no signs of damage or excessive wear. Examine hoses, fittings and cylinders for any visible leakage outside; confirm if connections are tightly secured or swap out parts that have been harmed to stop leaks from sealing properly.
Contaminants like dust, dirt and water can get into the system when your seals wear out. They can also build up if you have a problem with the filtration system. When contaminants circulate, they can damage the hydraulic pumps, valves and other parts, making the machine less efficient.
A small leak can turn into a major failure. Replace damaged hoses immediately. Don't wait until the leak gets worse – hydraulic fluid under pressure is dangerous, and catastrophic hose failure can injure operators. Inspect the hydraulic filter for any signs of fine metal or debris, which would indicate a potential pump or component failure. It may appear as fine glitter in the oil.
Air in the System
Jerky right control often stems from air trapped in hydraulic lines or worn control valves. Hydraulic systems can suck in air, requiring bleeds to purge. Bleed the hydraulic system thoroughly to remove air pockets. Inspect the main control valve spool for wear or contamination causing erratic flow.
Bleeding air requires patience. Run the machine through full range of motion slowly, watching for bubbles in the sight glass. Keep reservoir topped up during bleeding process. Consult the manual for bleeding procedures.
Overheating: When Things Get Too Hot
Overheating isn't just inconvenient — it's a performance killer. Typically, overheating is due to a lack of coolant, a blocked radiator, or a faulty thermostat. Working the machine too hard in hot weather can lead to the same problem. Engine overheating and insufficient power: water tank blockage, cooling fan damage, lubricating oil deterioration, etc. will affect the normal heat dissipation of the engine, resulting in performance degradation or even burning.
Cooling System Checks
To prevent overheating, always check the coolant level before starting the machine. Ensure you use the correct type of coolant recommended by the manufacturer. Never mix multiple coolant types, as, for example, adding a propylene glycol-based coolant to ethylene glycol coolant can create a gelling reaction, damaging the radiator and potentially the entire engine.
Next, inspect your cooler. Clear any dirt, mud, or debris blocking airflow through the cooling fins. Just like a blocked radiator in your truck, a dirty hydraulic cooler can't remove heat effectively. Clogged coolers prevent proper heat transfer. Air alone won't get the rad properly clean, best use a pressure washer - straight on and be very careful not to bend the fins - it's amazing how much more crap the water will blast out.
The cooler for the hydraulic fluid is often bolted to the engine radiator. After washing it, tons of dust can come out of the fins - keep going for about 5 minutes and you'll see a dramatic improvement in cooling performance. Use pressure washers regularly to remove packed dirt. Good airflow is essential for proper cooling.
Coolant temperature – you might have to flush out your coolant and replace it to see if that solves the problem. Check for air locks – particles often get lodged in the radiator core. The operating temperature can be influenced by low coolant, debris that blocks airflow in the radiator, and leaks.
Thermostat Problems
Replace the thermostat – if your coolant temperature rises and then suddenly drops, the thermostat might be the problem. A malfunctioning thermostat can prevent the coolant from flowing properly, causing the engine to overheat.
Alright, have you replaced the radiator cap? If the cap isn't maintaining the pressure in the radiator, it could lead to overheating. The massive vibrations that are generated as an excavator is working can cause the radiator cap to loosen. The cooling system may therefore lack the pressure that is needed to force water and coolant to flow to all the parts of the engine.
Undercarriage Problems
When there are problems with the undercarriage, it can make an excavator not work well. This part holds up the whole weight of the machine and gets a lot of wear and tear. Problems with an excavator's undercarriage can account for more than half of maintenance costs.
Track Tension Issues
Proper track tension on your mini excavator ensures top performance, extends the life of the undercarriage, minimizes downtime and reduces wear on the track drive components. Tracks must not be too loose or too tight. Using improper track tension can lead to a host of related maintenance problems.
Tracks that are too tight can place excessive pressure and wear on the idlers, rollers and sprockets, leading to premature failure. Over-tightened tracks place excessive strain on components like idlers, rollers, and sprockets. This strain accelerates wear and can lead to premature failure. Tight tracks also increase resistance, reducing fuel efficiency and making the machine harder to maneuver.
Conversely, tracks that are too loose can cause the undercarriage to sag, leading to increased wear on the pins and bushings. Loose tracks often slip off rollers, especially on uneven terrain. This slippage can cause downtime and damage to the undercarriage. If your track is too loose, it may slip off the Drive sprockets & idlers, which can cause derailment and frequent interruptions on site.
Extremely loose tracks are often caused by improper tensioning. Referring to the operator's manual, adjust track tension on both sides until even and within the specified limits. This avoids further undercarriage damage. The best way to prevent operating your machine on tracks that are too tight or too loose is by checking track tension at the start of each shift.
Uneven track tension results in tracks loose on one side or extremely taut on the other. Tension Inspection: Check for even tension across tracks and adjust per manual specifications.
Wear and Damage
Tracks endure the most wear during operations. Check for cracks, cuts, or missing links. Excessive wear caused by debris buildup or operating on abrasive surfaces. Misaligned tracks are thrown by sprocket interaction.
Rollers and idlers support the tracks, while sprockets drive them. Inspect these components for uneven wear, cracks, or missing teeth. Damaged rollers or sprockets can cause misalignment, reducing efficiency and increasing the risk of breakdowns.
Proper Cleaning: Use pressure washers regularly to remove packed dirt around rollers/idlers. Wear Measurement: Inspect and measure track wear plates/guides, replacing them as needed. Damage Assessment: Look for cracks or missing track pads/links and replace them immediately. Clean out any dirt and debris collected during a shift to help prevent buildup that could accelerate wear.
Electrical System Troubles
While electrical issues are less common in mini excavators, they can still occur and turn off machine function completely. The electrical system energizes all excavator functions.
Common Electrical Problems
Check battery terminals for corrosion and guarantee a tight connection. Proper maintenance of a battery guarantees consistent engine starts and lowers the possibility of electrical system breakdowns. Batteries: Check electrolyte levels and terminals. Clean corroded connections. Recharge/replace as needed. Discharged batteries prevent starting.
Open the fuse box, check the fuses for blown fuses, and replace them. If your digger is not starting, it could be due to a fuse that controls an essential function, such as the fuel pump, being the cause of the issue.
Wiring: Inspect insulation. Repair frayed wires and loose connections, which can shorten systems. Faulty wiring is a common issue. Blown fuses can bring your work to stop. Sensor failures can cause your machine to stop working or run erratically. Loose or corroded wiring and blown fuses can also disrupt the electrical flow or interrupt the power supply.
Lights: Test illumination of all safety/work lights. Replace burnt-out bulbs promptly. Gauges: Confirm that the fuel level, temperature, and pressure gauges are read accurately. Faulty gauges give false equipment health data.
Movement and Control Issues
If the CAT 3025C won't move forward after pressing the right joystick button, check the joystick lockout switch used for drilling mode. This safety feature disables travel functions to prevent accidental movement. Reset the joystick by releasing the button fully and cycling the ignition.
Drive Motor Problems
If you're pushing the lever forward on the control panel and the machine is going backwards, you have a travel drive problem. Drive motors can travel in both directions. You'll see two high-pressure lines connected to the drive motor. Flip them to the opposite connections so the motor moves in the right direction.
Inspect the hydraulic control valve and related wiring for faults or stuck positions. Regularly clean joystick contacts and ensure hydraulic fluid levels are adequate to maintain smooth operation.
Engine Performance Issues
Mini excavators often experience engine problems such as not starting, running unevenly, losing power, stopping suddenly, making strange sounds, or emitting smoke. Additionally, they can also suffer from issues related to overheating.

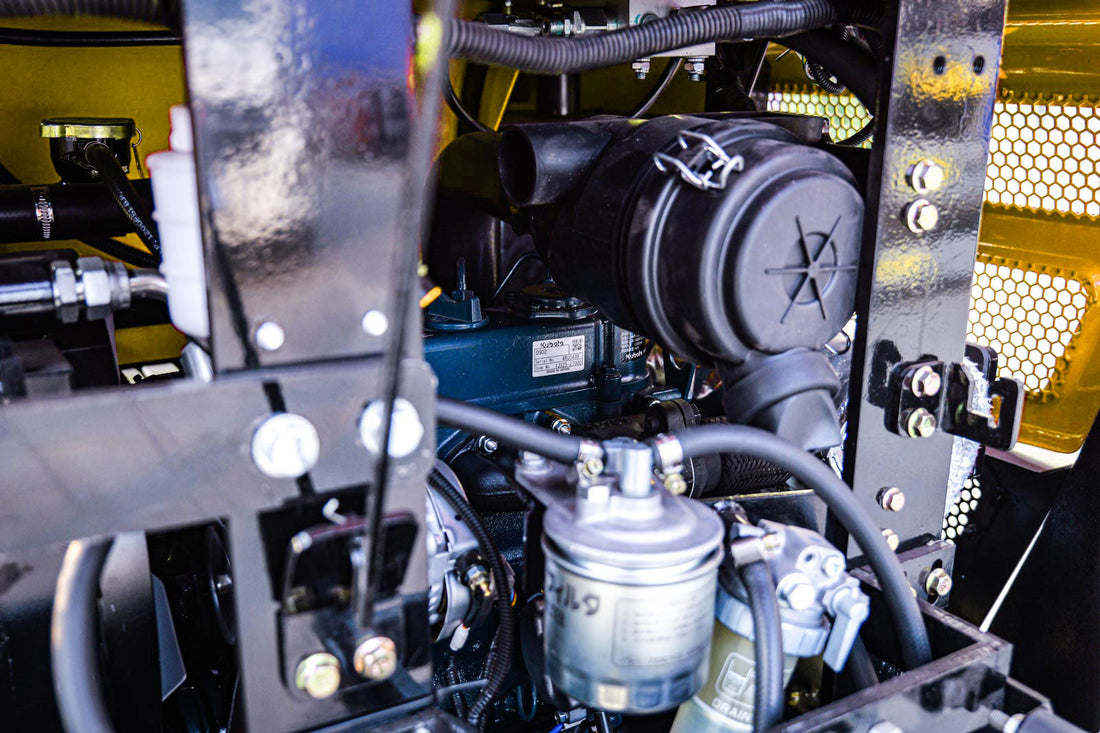

Air and Fuel Filters
An air filter that is blocked can decrease the amount of air going into the engine, which affects how well combustion happens. Check and clean the filter often. Clean air filters weekly and replace them as needed or every 500 hours.
The smoke could be the result of a dirty air filter restricting airflow or a faulty turbocharger not properly mixing the air and fuel. It can also be caused by an incorrect fuel mixture, leading to incomplete combustion. You can minimize the excess smoke with regular maintenance and timely repairs.
Fuel Supply: Contaminated or low fuel also impacts performance. Check fuel quality and levels. Replace fuel filters every 500 hours or annually. Clogged filters decrease engine power.
For a 420cc Lanty Mini Excavator, poor running often stems from dirty carburetors and incorrect valve clearance. Clean the carburetor thoroughly to remove varnish and debris. Check valve lash using feeler gauges; adjust intake and exhaust valves per manufacturer specs to ensure proper sealing.
Oil and Lubrication
Engine oil helps in reducing friction, which in turn reduces heat. Regularly check and change the engine oil to ensure it's at the right level and in good condition. Change engine oil and replace the filter every 100-500 hours based on usage. Use manufacturer-approved oil.
Engines need to be serviced regularly. Diesel filters need to be kept clean and free from contamination. Regular greasing of your mini excavator reduces the chances of pin wear, loose connections and pin failure.
DIY vs Professional Help: Making the Right Call
Knowing when to grab tools and when to call a technician saves money and prevents making problems worse. Troubleshooting excavator issues can be as simple as: Inspecting fluid levels, including engine oil, coolant and hydraulic fluid. Greasing all lubrication points following the manufacturer's recommendations.
You Can Handle:
- Battery replacement and terminal cleaning
- Air filter replacement
- Basic fluid level checks and top-ups
- Track tension adjustments
- Radiator cleaning (external)
- Safety switch inspection
- Greasing pivot points
- Replacing air, fuel and hydraulic filters at recommended intervals
Call a Professional For:
- Hydraulic pump replacement
- Engine internal repairs
- Electrical system rewiring
- Valve adjustments (if you lack experience)
- Warranty-covered repairs
- Persistent problems after basic troubleshooting
Some issues call for professional diagnosis and repair. For instance, if your excavator still isn't starting after checking the battery and wiring, or you're experiencing persistent leaks after fixing the connections, it's best to consult a mechanic. The line isn't always clear. If you've checked everything in the "easy" category and the problem persists, professional diagnosis prevents expensive mistakes.
Every excavator comes with an operator's manual. This document contains valuable information such as how to operate it, take care of it, and troubleshoot common excavator problems. If the owner's manual doesn't have the answers you need, contact a service technician who can identify the problem and provide a solution.
Preventive Troubleshooting: Catching Problems Early
The best troubleshooting happens before something breaks. Walk around inspection takes 5 minutes but catches 80% of developing problems. Implementing preventative maintenance is infinitely easier and cheaper than reactive repairs needed after failures occur.
Every Morning Before Starting:
- Visual inspection for leaks (look under the machine)
- Check all fluid levels
- Test safety features
- Inspect tracks and undercarriage
- Verify attachments are secure
- Perform a quick visual inspection before each shift
Weekly Tasks:
- Grease all pivot points (bucket, boom, stick)
- Check belt tension
- Inspect hydraulic hoses for wear
- Clean cooling fins
- Test all gauges and lights
- Keeping the excavator clean to prevent debris from building up
Monthly Deep Checks:
- Measure track wear
- Check for play in pins and bushings
- Inspect electrical connections
- Test hydraulic pressure
- Review hour meter for upcoming service intervals
Regular inspections are essential for maintaining the performance and longevity of mini excavator undercarriage parts. By identifying potential issues early, you can prevent costly repairs, reduce downtime, and ensure a safer work environment. This rhythm becomes automatic. You'll spot a weeping seal before it becomes a gushing leak.
Seasonal Considerations
Temperature extremes change how machines behave and what fails.
Winter Challenges
Cold weather can thicken the fuel and oil, making it harder for the engine to turn over. Using heater accessories, appropriate cold-weather fuels, and keeping the battery charged can help. Water in fuel filters freezes, blocking flow. Batteries lose 30-50% capacity in freezing temperatures. Hydraulic oil thickens, causing sluggish operation.
Difficult starting and frequent flameouts: Most of them occur in low temperature environments or when the fuel supply system is blocked. Incomplete diesel combustion, poor air intake, and insufficient starting voltage can all lead to starting failures, especially in winter.
Winter preparation: Use winter-grade diesel. Keep batteries fully charged. Consider block heaters for very cold climates. Check glow plugs function properly. Use engine block heaters to warm the engine before starting in cold conditions.
Summer Issues
Plan heavier hydraulic tasks for cooler times of day, and position the machine so prevailing winds or open space can assist with airflow. By aligning your operating patterns with ambient conditions, you'll help protect your hydraulic system from overheating.
Monitor coolant levels daily. Ensure cooling fins stay clean – they clog faster in dusty summer conditions. Watch temperature gauges religiously. If temperatures creep up, reduce load immediately.
Tools You Actually Need
Having the right tools makes troubleshooting possible. Don't need a full workshop, but these basics are essential:
Diagnostic Tools:
- Digital multimeter ($30-50)
- Tire pressure gauge (for checking hydraulic accumulator if equipped)
- Flashlight (headlamp works better – keeps hands free)
- Magnet (for finding metal shavings in oil)
Hand Tools:
- Socket set (metric, 8mm-24mm most common)
- Adjustable wrench
- Screwdrivers (flat and Phillips)
- Grease gun
- Wire brush
- Pliers
Supplies:
- Shop rags
- Spare hydraulic oil (correct spec for your machine)
- Engine oil
- Coolant
- Grease cartridges
- WD-40 or similar penetrating oil
Safety Equipment:
Safety glasses
Gloves
First aid kit
Keep these in a dedicated toolbox near the machine. When you need a 14mm socket, you need it now – not after a 20-minute search.
Common Mistakes That Make Things Worse
Experience teaches, but learning from others' mistakes is cheaper.
Mistake 1: Skipping the Manual Your operator's manual contains specific information for YOUR machine. Torque specs. Fluid capacities. Wiring diagrams. Generic advice often misses model-specific quirks. Keep the manual accessible (laminated copy in the cab works well). If you would like additional how-to and troubleshooting guides, you can consult or download the mini excavator's operator's manual.
Mistake 2: Mixing Fluids Not all hydraulic oil is compatible. Not all coolant mixes safely. Using whatever's available can create sludge, foam, or chemical reactions that destroy seals. Stick to manufacturer specifications.
Mistake 3: Over-Tightening
More torque doesn't mean more secure. Stripped threads and cracked fittings often result from "making it extra tight." Use a torque wrench for critical fasteners. For everything else, snug plus a quarter-turn usually suffices.
Mistake 4: Ignoring Small Leaks "It's just a few drops" becomes "I'm down two gallons" faster than you think. Small leaks indicate failing seals or loose connections. Address them before they fail catastrophically.
Mistake 5: Starting Without Warming Up Especially in cold weather, running hard immediately damages components. Let oil circulate. Let hydraulic fluid warm slightly. Your machine will last thousands more hours.
Mistake 6: Over-Cranking the Engine Don't over-crank it, or you'll risk flooding the engine and causing other difficulties. Instead, allow 15 seconds between each attempt and use 5-8 second spurts.
Keeping Records: Your Future Self Will Thank You
Document problems and solutions. Sounds tedious. It's invaluable.
Simple log format:
- Date and hour meter reading
- Problem description
- What you checked
- Solution applied
- Parts replaced
- Cost (if applicable)
Patterns emerge from good records. "Fuel filter keeps clogging every 200 hours" suggests contaminated fuel tank that needs cleaning. "Alternator belt breaks every 6 months" means either wrong belt or misaligned pulley.
Records also prove maintenance for warranty claims and help with resale value. Buyers pay more for documented maintenance history.
Getting Back to Work
After you've found the problem from step-by-step troubleshooting, make sure to fix it before continuing to use the excavator. Don't let starting problems kill your productivity. With the right troubleshooting approach and quality equipment, you'll spend more time moving dirt and less time scratching your head in frustration.
Mini excavators grant huge productivity benefits to any construction site when running smoothly. By learning to recognize issues early and troubleshoot them methodically, you can get your equipment quickly back on track.
Remember: Your machine talks to you through symptoms. Listen carefully. Check systematically. Fix properly. Most problems have simple solutions if you know where to look.
