In projects such as residential and landscape beautification, drainage system construction, or utility pipeline installation, excavating drainage ditches if relying on manpower, this requires consuming a lot of time and energy, but now mini excavators can replace people to complete this task. This detailed guide will explain how to effectively utilize small excavators, even in narrow home spaces, to excavate drainage ditches precisely, safely, and quickly.
Why Use a Mini Excavator for Drainage Ditch Digging?

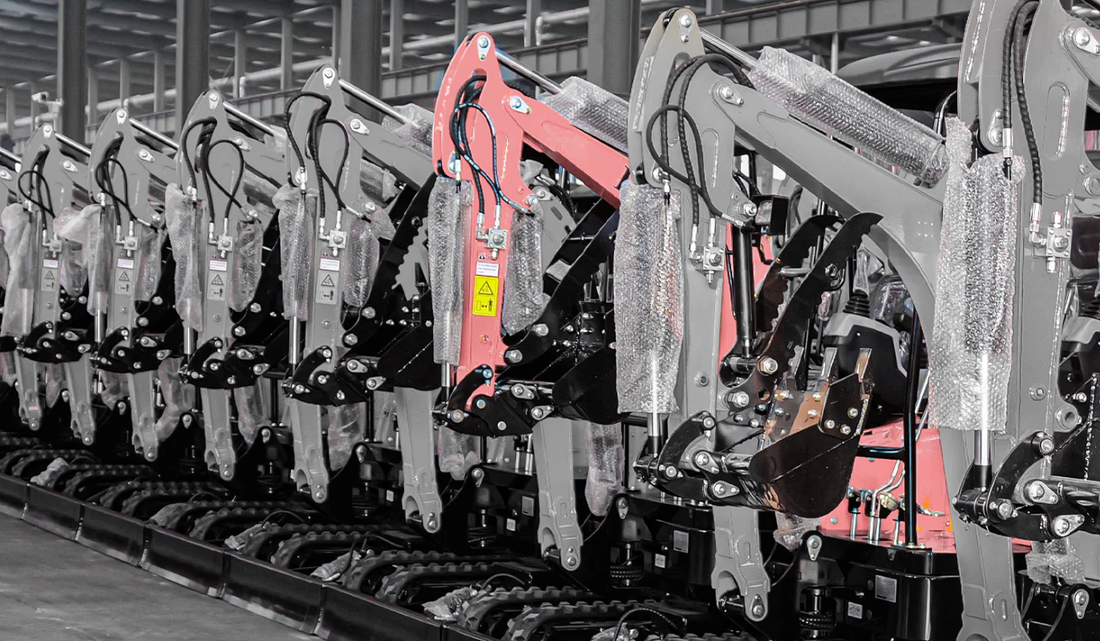

A mini excavator, sometimes called a compact excavator, is essentially a smaller, more maneuverable version of a full-sized excavator. Weighing under 8 tons with a more limited digging depth capacity, mini excavators excel at residential-scale trench digging.
Key Benefits
Sturdy tracks allow mini excavators to handle soft, uneven terrain. The adjustable boom and arm with hydraulic power deftly swing a bucket attachment to scoop and move earth. This equipment can trench through dense clay and rocky soils with much more ease than manual shovel work.
Given their petite frames and short rear swing radii, mini excavators fit into backyard spaces too tight for larger excavators. Their compact size coupled with pivot steering capacities allows them to dig trenches in close quarters between trees, fences, and structures where full-sized models simply can't maneuver. A rubber track mini-excavator can climb right down in a ditch, or set up in the road, swing sideways and use the offset swing of the boom to keep it fairly parallel to the road—something that's much harder to accomplish with a backhoe.
The average 1-ton mini excavator can dig up to about 3-5 feet, which means utility trenches, backyard drainage ditches, and many other small projects fall within its digging capacity.
Critical Safety and Inspection Steps Before Digging
When operating heavy power equipment like excavators, job site safety and responsibility should be top priorities.
Contact Local Utilities for Buried Line Marking
Accidentally striking underground gas pipes, electrical lines, or other infrastructure can cause severe hazards and will incur major fines. So the very first step is calling 811 to request line marking at your dig site at least 48 hours before excavating. Your information will be logged, and local utilities will be alerted to come to your dig site and mark their facilities.
Markings are approximate and there is a tolerance zone between 18 and 36 inches to either side of the mark. Don't dig inside the tolerance zone and risk rupturing utilities.
Markings are made by flags that are color coded based on which utility is buried on your site:
- Red flag: Electrical power lines, cables, conduit or lighting cables
- Yellow flag: Natural gas, oil, steam, petroleum, chemicals or other gas
- Orange flag: Communications, phone lines, alarm lines, signal lines or cable TV
- Blue flag: Water, irrigation or slurry lines
- Green flag: Sewers or drains
- White flag: Planned excavation
- Pink flag: Temporary survey markings
- Purple flag: Reclaimed water
Never assume someone else has made the call to the One Call System. It's better to call twice on the same job than to arrive for work and find that nothing has been marked.
Conduct a Thorough Excavator Inspection
Before start-up, check whether the fuel, engine oil, coolant, and hydraulic oil levels are normal. Inspect tire/track wear (tracks should be adjusted to proper tension). Ensure the connection pins of the bucket, arm (stick), and boom are secure. Check for any seepage or leaks in the hydraulic lines.
After starting the engine, let it idle for 3–5 minutes (extend to about 10 minutes in winter) to preheat the hydraulic system. Test whether the control levers (boom, stick, bucket, swing, travel) move smoothly, whether the motions are coordinated, and whether the brake, horn, and lights function properly.
Personal Protective Equipment
Don steel-toed boots, sturdy gloves, eye shields and ear protection at a minimum when running an excavator. Also use a hard hat and high visibility vest near traffic areas.
Ensure a Stable Platform
The excavator should sit level on solid, flat ground with even weight distribution. Position away from slopes and suspended loads that may shift suddenly. The larger the platform on which your excavator sits, the more stable your machine will be.
Choosing the Right Bucket for Drainage Ditch Digging
Your trench width requirements should drive bucket selection, not the other way around. For example, installing a 4-inch water line requires a minimum 8-inch trench width for proper bedding and backfill space. Using a 12-inch bucket for this work will move 50% more material than needed.
Bucket Size Guidelines
We follow what we call the "Pipe-Plus-Four Rule"—match your mini excavator bucket sizes to pipe diameter plus 4-6 inches for proper bedding material and backfill access. Common bucket categories include:
- Narrow buckets (8-12 inches): Best for precise utility work, like water lines or electrical conduits. At 37.3 pounds with a 7.9-inch width, an 8-inch bucket creates perfect trenches for 4-6 inch pipe installations without removing material excessively.
- Medium buckets (14-18 inches): For footings and mid-size drainage projects. An 18" bucket usually works out to be close to a 22-24" trench depending on soil conditions.
- Wide trenching buckets (20-24 inches): Provide maximum material handling capacity for larger diameter pipes (10-12 inches and above). At 50-75 pounds, these buckets require 4-6 ton mini excavators for optimal performance.
Specialty Buckets
- Trenching buckets: Have a curved shape that allows them to scoop out soil while digging, leaving a clean and ready-to-use trench. Some even come with side cutters for more precise digging.
- V-buckets: For deep, narrow V-shaped trenches. The V-shaped design eliminates the need for constant adjustments of angle and depth control, producing consistent and precise trench profiles throughout the excavation.
- Grading buckets (ditching buckets): Have wide and flat bottoms, perfect for leveling, back-filling, sloping, and cleaning ditches for improved drainage.
For drainage ditch projects, you can explore various excavator attachments that may enhance your work efficiency.
How to Position the Mini Excavator for Optimal Ditch Digging
Proper positioning is crucial for stability, efficient range of motion, and achieving straight evenly graded trenches.
Park Centered Directly Over the Planned Ditch Line
Place the excavator aligned squarely above the marked ditch path, not offset to one side. Position controls to face the trenching direction. Set your excavator facing the work area. Avoid digging over the side.
For ditching work, you can often center the machine in the ditch itself as it's much easier to pull your back slope and front slope this way. This also helps keep the continuity of the ditch and keep it straight.
Use Tracks to Outline Ditch Course
Notice how tracks imprint guideline paths visible in soil or turf? Use this effect to lay out the basic ditch direction. Keep tracks/treads parallel to eventual slope lines. The center line of the excavator chassis should be aligned with the lime line (or marked path), and the middle teeth of the bucket correspond to that line. If there is no lime line, you can use the excavator track to press out a connecting line first, and the traces of the track left can serve as your guide.
Set Arm and Bucket Angle Within Optimal Operating Range
The optimal digging range for your stick starts about 35 to 45 degrees from vertical back to a vertical position—we refer to this as the "35-45 Power Zone." Digging outside this range lowers your efficiency, lengthens cycle times and may make your excavator's position less stable. Ideally, the bucket should be loaded by the time your stick returns to the vertical position.
As you dig, continue to move the machine undercarriage forward (or backward) between passes to maintain this 35- to 45-degree range.
Preserve Excavator Stability
Avoid long off-center reaches which can destabilize the equipment. Dig from the stable supportive diagonal zones of the track's footprint. Need to make repeated long reaches? The most stable positions to dig are diagonally across each corner of your tracks.
Step-by-Step Process for Digging Drainage Ditches
1. Mark the Ditch Position
Use neon marking paint or stakes with string to outline the exact trench location on the ground. According to construction requirements (drainage, pipe laying, cabling), use marking powder (lime) or a chalk/string line to mark the trench centerline, width, and starting point.
Spend at least 30 minutes walking the entire route, marking obstacles, and planning around them before the excavator even arrives. This prevents the costly mistake of having to backfill and redirect the trench mid-project because you encountered tree roots or other obstacles.
2. Strip Away the Top Layer Carefully
Remove existing topsoil and sod first, segregating it so that it stays workable for later finish grading. Carefully remove the top layer of sod before proceeding to the deeper excavation.
3. Dig From Top Down in Layers
When trenching, start at the top and work down in layers. Don't dig from the bottom and fill your bucket by raking up the face. Digging from the bottom up is much harder and extends your cycle, because you'll be going all the way to the bottom of the trench on each pass.
When using a small excavator to trench, excavation should proceed in layers (especially when the depth exceeds 1.5 m/5 feet) to avoid trench wall collapse caused by digging too deep in a single pass:
- Start at the ditch end and move backward
- Dig in layers: first top soil, then deeper soil
- Never dig full depth at once
- Keep side slopes even, adjust slope by soil type and depth
- If ditch is wider than bucket, dig from both sides to the middle
4. Excavate to Full Depth in Sections
Begin the excavation by digging down to the full depth in one section before moving laterally to grade the sidewalls or expand the width. Repeat this process until the lowest grade is achieved across the entire planned line.
For flat sidewalls and bases, the bottom edge of the bucket should stay vertical. Coordinate stick and bucket motions to keep the bucket's bottom edge vertical as it swings through the soil—this slices flat smooth trench walls.
5. Maintain Proper Slope Angles
Shape walls at consistent angles working bottom up rather than just sideways. This prevents sloppy slumping trenches in uneven "V" shapes.
For superior performance and durability, design the side slopes of ditches while respecting as much as possible the angle of repose of the existing soil and vegetation development. Ideally, the slope should be gentler than 2:1. Creating walls that are nearly vertical is a common mistake—they will likely collapse within weeks of heavy rain, filling the ditch with mud and debris. Proper 45-degree angles remain much more stable through multiple severe storms.
6. Work From Downstream to Upstream
We call this the "Reverse Flow Method"—digging a ditch from the bottom of the slope upwards (from downstream to upstream) makes it easier to give it the correct slope. This will also prevent water flow from complicating the work.
7. Create Curves Instead of Right Angles
If your ditch needs to change direction, it is better to create a curve rather than a right angle. Right angles tend to erode quickly.
8. Keep the Ditch Straight
- After each bucket, move one step back
- Always check behind to keep the machine straight
- If you have a guide line, follow it closely
- If no line, press your own track line and follow it backward
9. Remove Cave-in Materials Promptly
Use the bucket to frequently clear off loose debris, rocks or soil chunks that slough into the trench, compromising walls. This will keep the walls clean and stable.
10. Maintain Proper Drainage Grade
The drain must always maintain a consistent downward slope of at least 1% (1 inch drop per 10 feet of length). Without this slope, water won't flow through the system and will eventually cause clogs and failures. For addressing water flooding near foundations, a typical guideline is to create a slope that drops about 1 inch per foot for at least 5 feet out from the foundation.
Use a measuring stick to check depth frequently and a level placed at multiple points along the trench to verify consistent grade.
Adding Finishing Touches for Durable Ditches
Smooth and Level Trench Bottom
Use the excavator bucket to gently "throw and smooth" the base until uniform, promoting proper drainage. After completing the initial dig, make a final pass with the bucket held flat, barely skimming the bottom surface—we call this the "Skim-and-Level Pass." This removes any high spots that might impede water flow. Create a flat bottom rather than a 'V' bottom which would help with erosion and make it easier to mow after the grass has a chance to grow back.
Trim the Slopes
Trim the slopes as you dig to prevent collapse. Level the ditch bottom: keep both flatness and depth correct. Cutting back the back slope so you don't have a slope failure and so you can mow it will also look better in the end.
Install Shoring Elements If Necessary
In deep trenches or unstable soils, brace walls with plywood sheets, trench boxes, metal shoring, or recessed steps. OSHA guidelines require shoring, shielding, or benching for trenches deeper than five feet (or less in unstable soil).
Add Piping or Drainage Elements
If utilities are involved, lay and connect them precisely following code specs before backfilling over.
Carefully Backfill the Trench in Layers
Finally, replace excavated material in thin 8-10 inch layers, tamping for compaction between each pour. Keep the spoil stacked on one side for convenient reuse if backfilling is required later.
Common Errors to Avoid During Drainage Ditch Excavation
Through our project experience, we've identified what we call the "Five Critical Failure Points" in drainage ditch excavation:
1. Forgetting to Contact Local Utilities
Accidentally striking unsafe dirt-covered cables or pipes brings major risks and massive fines. Always call 811 first!
2. Haphazard Unplanned Digging
Careful plotting of trench positioning, depths and slopes prevents subpar sluggish work requiring re-dos. Measure meticulously first. Walk the entire route and plan around obstacles before starting.
3. Creating Vertical Walls
Creating walls that are nearly vertical, thinking this would save space, is a common mistake. Within two weeks of heavy rain, both walls can partially collapse, filling the ditch with mud and debris. Create proper 45-degree angles for long-term stability.
4. Disregarding Signals of Unstable Soils
Crumbling, cracking, and eroding soil indicates walls will easily collapse. Reinforce with immediate shoring supports. Uncontrolled digging before understanding the soil type may lead to the collapse of trenches, poor drainage, or sinking foundations.
5. Digging Too Deep at Once
Never dig full depth at once, especially in trenches exceeding 1.5 meters. This causes trench wall collapse. Dig in layers instead.
Additional Errors
Ignoring Water Management: Unaddressed water accumulation leads to soil instability, erosion, and costly delays. Include water management strategies like drainage systems and dewatering when planning your project.
Neglecting Proper Grade: Not maintaining proper drainage slope (minimum 1% grade) causes water to pool rather than drain, eventually leading to clogs and system failure.
Routine Mini Excavator Maintenance
Follow the manufacturer's manual for timely service of fluids, filters, lubricants, tracks, and other upkeep. Proper mini excavator care prevents issues for years of quality ditch digging.
An effective maintenance regimen starts with a daily check of fluids, including coolant, hydraulic fluid and engine oil. A general rule is to check hydraulic fluid levels and lubrication points before each major use session. Change hydraulic filters every 6 months or 200 hours during active digging seasons.
After completing work:
- Park the excavator on flat, firm ground; avoid parking at the trench edge or on soft/unstable areas
- Let the engine idle for 2–3 minutes before shutdown to allow hydraulic system pressure to dissipate
- Clean out any remaining soil from the bucket
- Inspect the machine for dents, impacts, or oil leaks, and repair promptly if faults are found
- Refill fuel, engine oil, and other necessary fluids to prepare for the next operation
Conclusion
Mini excavators are ideal power equipment choices for residential-scale trench digging, eliminating backbreaking manual shovel work. By following safe operating procedures and techniques outlined here for controlled precise trench carving, homeowners can neatly complete ditch projects even in confined home spaces.
A good drainage system stops water from pooling, keeping your home and garden safe from water-related damage. Whether for a residential landscape or a larger commercial property, a mini excavator can significantly simplify the process of digging a trench for drainage. Remember, proper planning, safety precautions, and correct operating techniques are crucial to the success of your trenching project.
FAQs
What safety gear should I wear when operating a mini excavator to dig ditches?
You should wear steel-toed boots, thick gloves, eye protection, and ear protection at minimum when operating a mini excavator. Also use a hard hat and high-visibility vest when working near traffic areas.
How do I ensure the mini excavator is stable when trenching?
Park the mini excavator on firm, level ground with weight evenly distributed across the tracks. Face the excavator squarely aligned over the planned ditch to allow optimal movement range. Avoid long off-center reaches which can destabilize the machine.
What's the proper technique for carving neat trenches with uniform sidewalls?
Use precise stick and bucket control movements to keep the bucket's bottom edge vertical as it swings through the soil. This slices flat smooth trench walls. Maintain a consistent 45-degree angle working bottom up rather than just sideways.
Why does my trench have uneven sloping walls and bottom?
Uneven "V" shaped trenches with sloping walls happen when digging outside before the bottom depth is reached. Also, not keeping the bucket edge vertical when scooping creates angled choppy walls. Dig the bottom first, then use level bucket motion.
How deep can a mini excavator dig for drainage work?
A typical 1 ton mini excavator can dig up to about 3-5 feet, while larger models can reach greater depths. For most residential drainage ditches, the depth between the infrastructure line and the bottom of the ditch should be between 0.30 and 0.60 meters (12-24 inches). Trenches deeper than 5 feet require protective systems according to OSHA standards.
What slope should a drainage ditch have?
A drainage ditch should maintain a consistent downward slope of at least 1% (1 inch drop per 10 feet of length). For foundation drainage, create a slope that drops about 1 inch per foot for at least 5 feet out from the home.
How often should I maintain a mini excavator used for home trench digging projects?
Follow the machine manufacturer's manual for servicing intervals, but a general rule is to check hydraulic fluid levels and lubrication points before each major use session. Change hydraulic filters every 6 months or 200 hours during active digging seasons.
