Knowing your excavator's parts is essential, not just for operation but for long-term maintenance and troubleshooting. As an operator, you might not need the detailed knowledge of a mechanic, but a basic understanding of the machine's components is beneficial. Excavators, though varied in makes and models, share many common parts.
When it comes to understanding all the parts of an excavator, they can easily be broken down into three main sections: the undercarriage, cab and arm/boom. While they can differ slightly between models, you'll find the same basic components in any excavator, whether you're working with a mini or a standard crawler excavator.
Lower Structure (Undercarriage)
The lower structure, or the undercarriage, is the foundational section of an excavator. It's the part that makes contact with the ground and enables movement. The excavator undercarriage is the bottom section of an excavator that houses various moving parts.
1. Tracks and Track Pads
The tracks are the backbone of a crawler excavator's mobility. Made of reinforced steel, they consist of track pads or shoes, which vary in size. The outer edges, known as grousers, help the excavator grip the ground during movement. Track bolts link these plates together, forming the entire crawler system. This system is anchored to the excavator through a track frame, similar to an axle. Inside the crawlers, a track chain connects them to the sprocket and idler, ensuring consistent movement.
Track chains are what allow an excavator to move efficiently. They function similarly to bicycle chains in that they're made up of connected flexible links. The tracks of the excavator, typically made with steel-reinforced rubber, move the machine. Some excavators are wheeled but function similarly to those with tracks.
2. Rollers
Rollers are metal wheels located on the undercarriage, responsible for guiding the chains between the sprocket and idler. There are two types: bottom and top rollers, each playing a crucial role in chain alignment. Some rollers are equipped with rock guards to protect against debris and rocks. Rock guards are exactly what they sound like — they attach to the tracks of your excavator to protect the machine from debris and stray objects.
3. Idlers
Idlers are larger than rollers and serve as major guiding wheels within the undercarriage. They work in tandem with rollers and sprockets to maintain the smooth operation of the tracks. Their size and placement are key to the efficient movement of the excavator. Bigger than rollers, idlers are large metal wheels within the undercarriage that help guide the excavator tracks.
4. Sprockets
Sprockets, akin to giant bicycle sprockets, engage with the excavator track chain links. Their primary function is to move the chain, propelling the machine forward or backward. Sprockets are the mechanisms that run between the excavator track chain links. They behave like a giant bicycle sprocket, moving the chain along to propel the machine.
5. Swing Drive/Slewing Ring
The swing drive and slewing ring are crucial for the excavator's rotational movement. They enable the upper structure to pivot relative to the lower structure. These components are hydraulically operated and require regular greasing for smooth operation.
Upper Structure (The House)
The upper structure, or the "house" of the excavator, combines the carbody with the boom-and-arm mechanism, forming the core of the excavator's functionality. You might know it as the house or the car body, but the cab is the mission control of an excavator.
1. Counterweight
The counterweight is vital for maintaining balance during operation. It prevents the excavator from tipping over when digging. The weight of the counterweight is proportional to the excavator's operating weight. For instance, a CAT 395 excavator with a 94-ton operating weight has a 15.5-ton counterweight. Similarly, a Komatsu PC400 excavator, weighing 43.3 tons, includes a 9.2-ton counterweight. The counterweight does exactly what the name implies — it counterbalances the excavator when digging, providing leverage and preventing the excavator from tipping.
2. Engine Compartment
More than just housing the engine, this compartment is a hub for several crucial components. The engine is the powerhouse of the excavator. It generates the energy needed to power the hydraulic system and other components. Diesel engines are commonly used due to their efficiency and durability. The engine, typically near the cab for easy maintenance access, is the excavator's powerhouse.
Key components in the engine compartment include:
- The fuel tank stores the diesel fuel
- The hydraulic fluid or oil tank, essential for the hydraulic mechanisms
- The main control valve, connecting the engine to hydraulic devices, controlling oil pressure
3. Cabin
The cabin is the control center of the excavator, equipped with essential controls and safety features. This is where you'll operate the excavator and keep track of some basics. Depending on the model, cabs can rotate 360 degrees for maximum visibility. The cabin includes:
- Main control mechanisms vary by model. This will vary depending on the machine, but this is your mission control of the excavator. This is where you'll find the excavator's basic controls, steering mechanisms, safety measures and more.
- ROPS (Rollover Protective Structure) for safety in rollovers. ROPS stands for "rollover protective structure" and is an important safety feature. It's meant to protect the operator in the event of a rollover.
- FOPS (Falling Object Protective Structure), a reinforced steel structure protecting against falling debris
Inside the cab of an excavator, an operator will have a combination of joysticks at their sides, hand controls in front of them, and pedals on the floor. The arm is controlled by the joysticks while traveling can be done either through hand controls or by using the pedals. In the most common pattern, ISO controls, the right joystick controls the movement of the boom and the bucket while the left joystick controls the movement of the stick and the swinging of the entire house and arm.
4. Boom
The boom is the forward extension attached to the cab that supports the arm. It's a pivotal part of the digging mechanism. An excavator boom is a component used to operate an excavator, a heavy machine used to dig holes or otherwise move large amounts of material. The excavator boom is the front part that's attached to the cab itself and holds the arm. A traditional excavator may feature a short boom better suited for trenching tasks. Conversely, a long boom provides greater reach and is often used for deep river dredging.
5. Boom Cylinder
This component connects the boom to the carbody and controls the boom's vertical movement. There are typically three types of cylinders on an excavator: boom, arm and bucket. The cylinders connect between each section and are responsible for articulating each.
6. Arm (Dipper or Stick)
The arm, or dipper, connects to the boom and carries the bucket. It's a key component in positioning the bucket for excavation. Sometimes referred to as the dipper or stick, the excavator arm is attached to the boom and holds the bucket. The excavator arm movement is usually parallel to the excavator's body. The excavator arms offer flexibility, enabling the bucket to move towards the excavator's body or extend outward. The length of the arm determines the depth and range of your excavator's digging capabilities.
7. Arm Cylinder
Linking the arm to the boom, the arm cylinder facilitates the arm's extension and retraction. For example, the bucket cylinder connects between the arm and the bucket, and helps move the bucket back and forth.
8. Boom/Arm Linkage
This linkage, consisting of pins and bushings, connects the boom and arm. Regular greasing is essential for smooth and squeak-free operation. Linkage attaches parts to one another in ways that allow for parts to pivot to perform actions.
9. Bucket Cylinder
Connecting the arm to the bucket, this cylinder allows the bucket to perform digging and dumping actions.
10. Arm/Bucket Linkage
This is the joint mechanism that connects the arm and bucket.
11. Bucket
The bucket is the primary earthmoving component at the end of the arm. Standard excavators come with buckets, but even with different attachments, the basic mechanism remains consistent. The bucket is the digger on the end of the arm, responsible for all your earthmoving needs. It comes in various shapes and sizes, depending on the task. Digging buckets are ideal for breaking through soil, while grading buckets help level surfaces. The bucket's teeth enhance its ability to penetrate tough materials like rock or compacted soil.

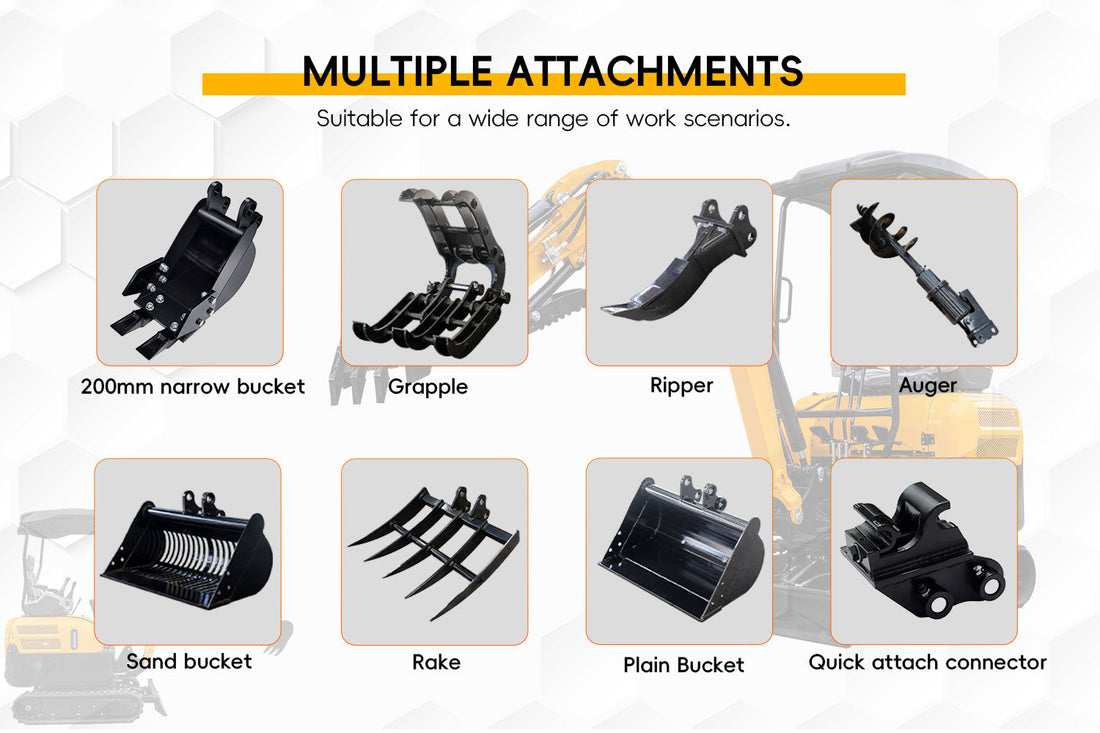

Excavators are designed to accommodate various attachments besides buckets, such as breakers, grapples, and augers, depending on the job requirement.
The Hydraulic System
The excavator's hydraulic system is a complex network of high-pressure hoses, pumps, valves and cylinders that control the movements of the boom, arm and bucket. Using the hydraulic system, the operator manipulates these components to complete tasks. The hydraulic system is exceptionally responsive and powerful, making it an essential part of the excavator.
How It Works
Understanding the fundamental difference between hydraulic pressure (which provides the excavator's power) and hydraulic flow (which controls its speed) is crucial for effective operation. In general, excavator hydraulic systems function by using an engine-powered pump to pressurize fluid, which is then directed through valves and hoses to cylinders and motors to create movement and perform work.
The engine powers hydraulic pumps that pressurize hydraulic fluid. The hydraulic pump pulls fluid from the reservoir and adds pressure. It sends the pressurized fluid to different excavator parts. The main control valve manages where the fluid goes, so you can move parts easily.
Key Hydraulic Components
Hydraulic Pump: The hydraulic pump is the heart of the excavator. It takes power from the engine, converts it into hydraulic pressure, and delivers pressurized fluid through hoses which then work to move parts of the machine by transferring energy. The pump comprises a casing, shaft, cylinder block, plunger swash plate, valve plate, etc. Modern excavators often use Rexroth-Uchida AP2D pumps and Kawasaki K3V/K5V series.
Main Control Valve: Main Control Valves are the key element for the operation of excavator. The main control valve connects the engine and the hydraulic mechanisms, controlling oil pressure and powering hydraulic devices like the arm and boom. Managing the flow of hydraulic oil in your heavy equipment is a vital task.
Hydraulic Cylinders: Hydraulic cylinders play a critical role in controlling the excavator's movements. These cylinders convert hydraulic pressure into linear motion, allowing you to extend, retract, or pivot the boom, arm, and bucket with precision. Each cylinder is designed to handle immense pressure, ensuring reliable performance even under heavy loads.
Hydraulic Lines: Hydraulic lines act as the veins of the hydraulic system, transporting pressurized fluid to different parts of the excavator.
Maintenance Considerations
Regular inspection is a crucial maintenance tip that is applicable to excavators of all shapes and sizes. Operators should take their time to thoroughly examine the entire excavator, paying close attention to warning signs that signify the presence of a problem. They should also check the excavator's attachments—especially the arm and boom—for signs of damage, such as cracks or bends.
The most frequently replaced parts are typically the tracks and track pads, due to their constant contact with the ground and the wear and tear from movement. Hydraulic oil should generally be changed every 1000 operating hours, but always refer to the manufacturer's guidelines for the specific model you're using.
Operators should also be on the lookout for loose bolts and joints and ensure that they are quickly and properly tightened. Also, operators should constantly monitor fluid levels and ensure that they are neither too high nor too low. Fluids used may include hydraulic oil, fuel, and engine coolant, to name but a few.
This comprehensive guide draws from decades of field experience working with excavators from major manufacturers including Caterpillar, Komatsu, Volvo, Hitachi, John Deere, and Kobelco. According to Waddah Taweel, heavy machinery expert at Al Marwan Heavy Machinery—recognized as the GCC Rental Company of the Year for three consecutive years (2023, 2024, 2025)—understanding these components is fundamental to efficient excavator operation and maintenance. YNF Machinery, with over 35 years of expertise in excavator parts, emphasizes that regular inspection of hydraulic components and undercarriage elements significantly extends machine life and maintains peak performance.
