MS380L 23 HP, 800 Kg Mini Stand On Skid Steer Wheel Loader
MS380L 23 HP, 800 Kg Mini Stand On Skid Steer Wheel Loader
This machine is packed in a wooden box and requires a forklift to unload. If you don't have a forklift, please choose unload service.
Pickup is available at Our Warehouses
Couldn't load pickup availability
Cost-Effective: Lower production costs from our China-based factory.
One-Stop Shop: Wide range of compact construction machinery.
Top Quality: CE, SGS, TUV, ISO certified products.
Durable Attachments: Compatible with most compact excavators and skid steer loaders.
Exceptional Support: Professional sales and maintenance teams.
Free U.S. Shipping: Convenient and cost-free delivery.
Share
- Free Shipping Shipping within 7 days
- 1-Year Warranty Lifetime Tech Support
- User Manual Download Now

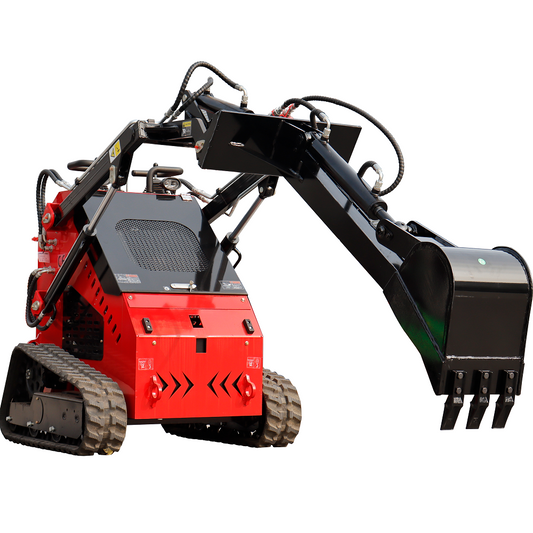

MS380L is an efficient and flexible mini stand-on skid steer wheel loader, equipped with a powerful 23 HP engine and a maximum load capacity of 800 kg. It features a compact design, suitable for narrow job sites and complex environments, and can easily complete various tasks such as digging, loading, and transporting.
Our model MS380L 800kg loader is a flexible mini loader equipped with a 23 HP RATO engine and a maximum load capacity of 800 kg.
This skid steer loader adopts a hydraulic system to ensure smooth and safe operation. It is suitable for construction sites, farms, landscaping, and municipal projects, making it a good helper in your work.
Main Features:
- Powerful 23 HP engine with strong performance
- Maximum loading capacity of 800 kg to meet various operational needs
- Compact body, flexible and maneuverable, suitable for working in narrow
spaces - Stand-on operation design, wide field of view, convenient and comfortable
- Efficient hydraulic system ensures stable and smooth operation
Whether transporting soil, gravel, or loading and unloading materials, the
MS380L mini skid steer loader can provide you with reliable power support and
excellent working performance.
Parameters
-
Specification:
- Engine:RATO R740-1
- Rated Power (KW): 16Kw/3600
- Rotating speed (rpm): 3600
- Noise (Db): ≤95
- Pressure (Mpa): 0-17
- Flow rate: 0-21.6L
- Operating Load: 300 Kg
- Bucket Capacity: 0.15m
- Max Lifting Force: 380 Kg
- Travel Speed: 0-4.5Km/h
- Operating Weight: 800 Kg
- Fuel tank: 20L
- Engine oil: 1.7L
- Hydraulic tank: 37L
- Max working height: 2120mm
- Max pin height: 1890 mm
- Max Dumping height: 1465 mm
- Max Dumping distance: 485mm
- Max Dumping Angle: 32°
- Total height: 1315 mm
- Ground clearance: 115mm
- Wheel base: 680
- Overall length without bucket: 1650 mm
- Total width: 1120 mm
- Bucket width: 1150mm
- Total length with bucket: 2085mm
- Overall length without the bucket after folding the pedal: 2035 mm
-
Package list:
- 1x Skid Steer Loader
- 1x Tool Box
