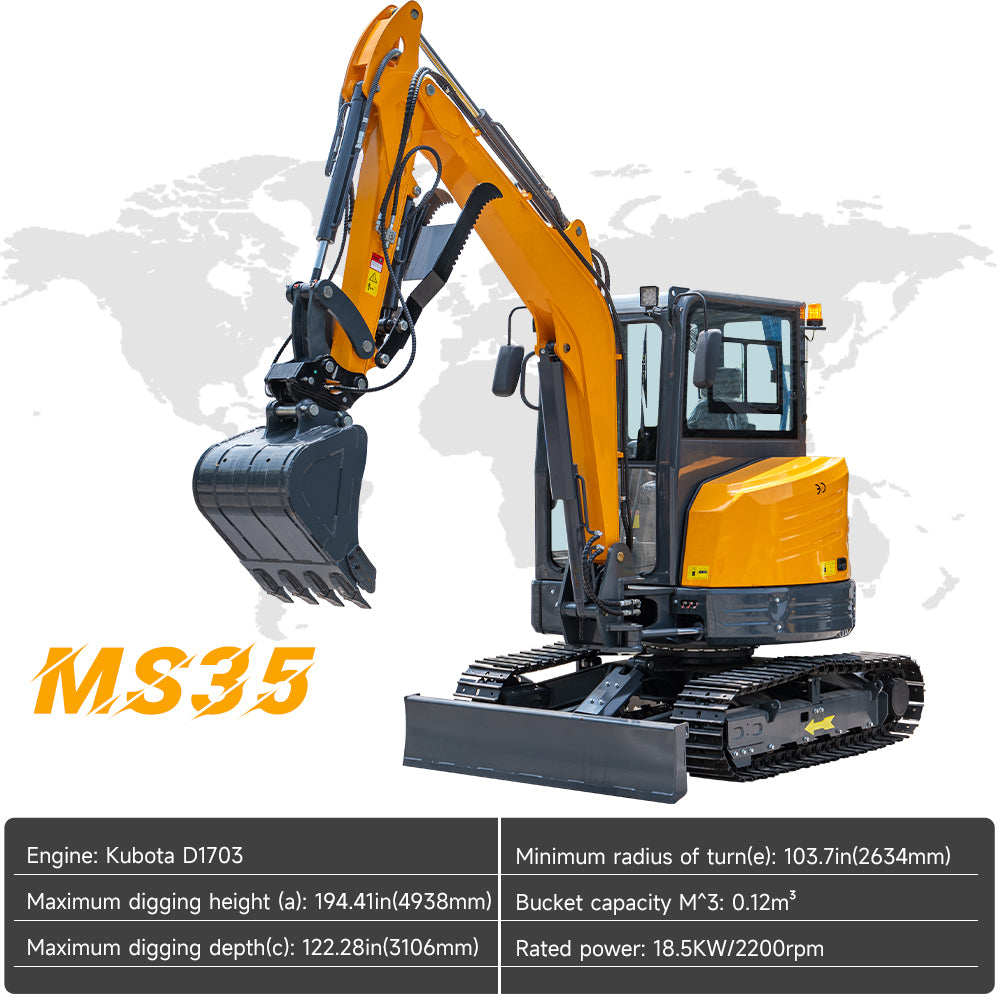

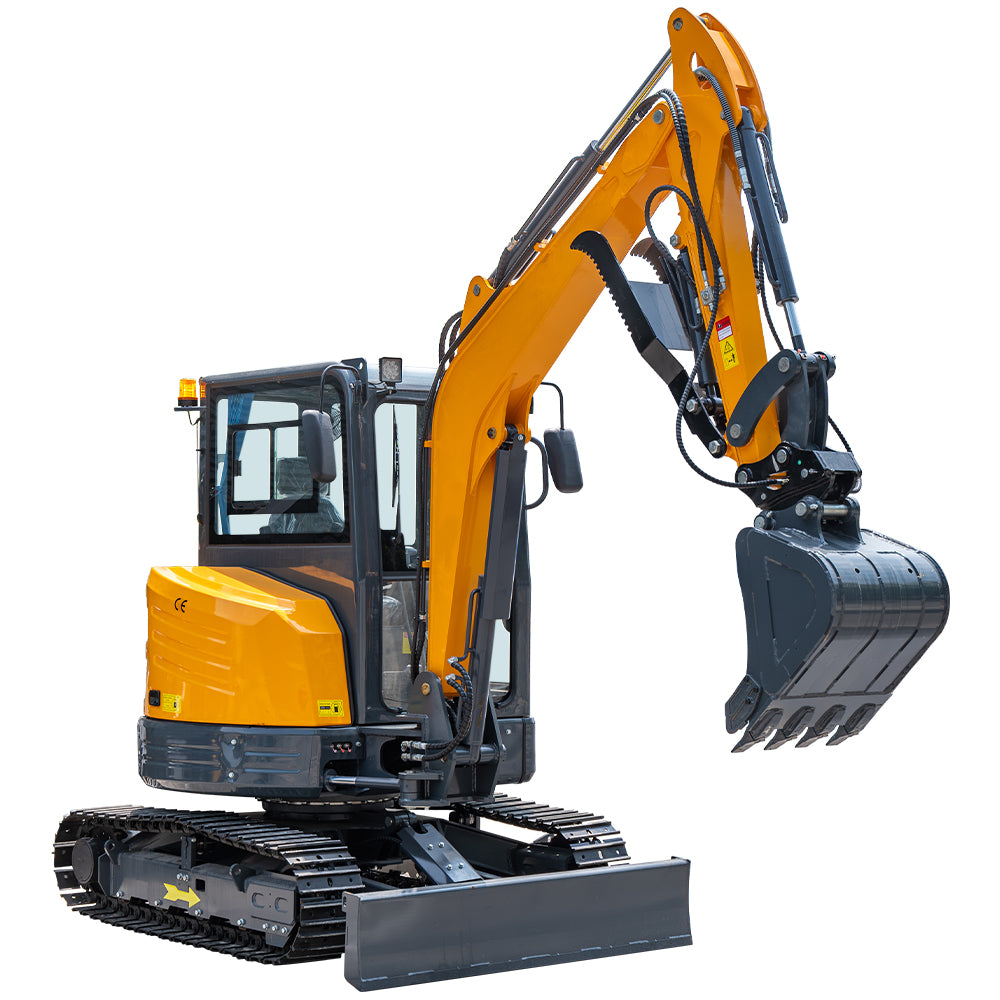

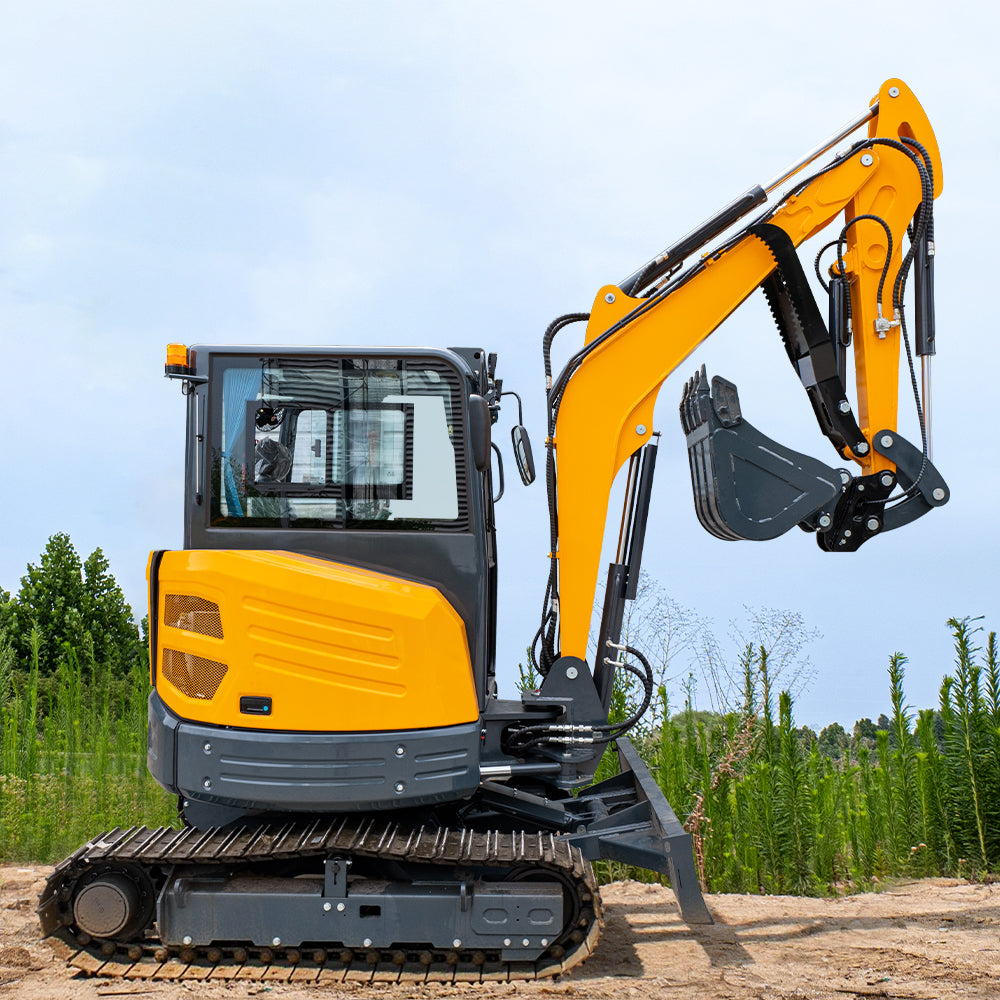

MS35 3.5 Ton Mini Excavator with Cab Boom swing Hydraulic Thumb for Sale

Name: MS35 3.5 Ton Mini Excavator with Cab Boom swing Hydraulic Thumb for Sale
Brand: MMS Industry
SKU: WJ35-PZ-JBT-Y-LZ
Price: 29999.0 USD
Availability: InStock

$29,999.00

~~$32,999.00~~ $29,999.00

save $3,000.00

Sale Sold out

Quantity

Pickup is available at Our Warehouses

Powerful Engine: The MMS small excavator is powered by a Kubota engine. It provides strong power, low fuel consumption, and excellent stability.
Efficient Operation: With a 23-inch smooth bucket for mini excavator and a maximum digging depth of 81 inches,offering precise and efficient excavation.
Top Quality: CE, SGS, TUV, ISO certified products.
Durable Attachments: Compatible with most compact excavators and skid steer loaders.
Exceptional Support: Professional sales and maintenance teams.
Free U.S. Shipping: Convenient and cost-free delivery.

Free Shipping Shipping within 7 days
1-Year Warranty Lifetime Tech Support
User Manual Download now

View full details

3.5 Ton Mini Excavator Features

Wide Applications

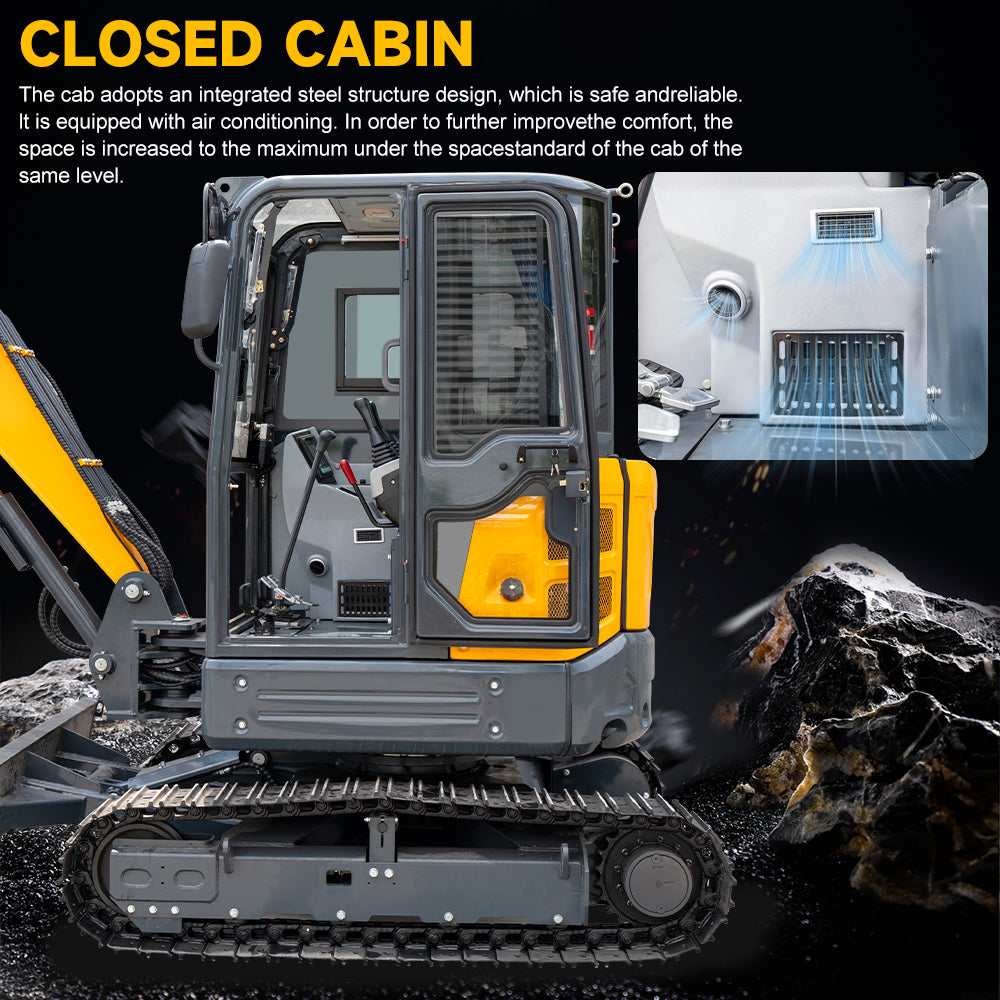

Our 3.5-ton mini excavator has a compact structure and good mobility. It comes with a variety of attachments, such as an extended hydraulic thumb clamp and air conditioning. Whether you are using it personally or for a construction team, our 3.5-ton mini excavator can well meet the performance needs of your work. We firmly believe that it can save you a lot of labor and time. This mini excavator perfectly balances power, efficiency, and ease of operation, and can meet the needs of various construction sites.

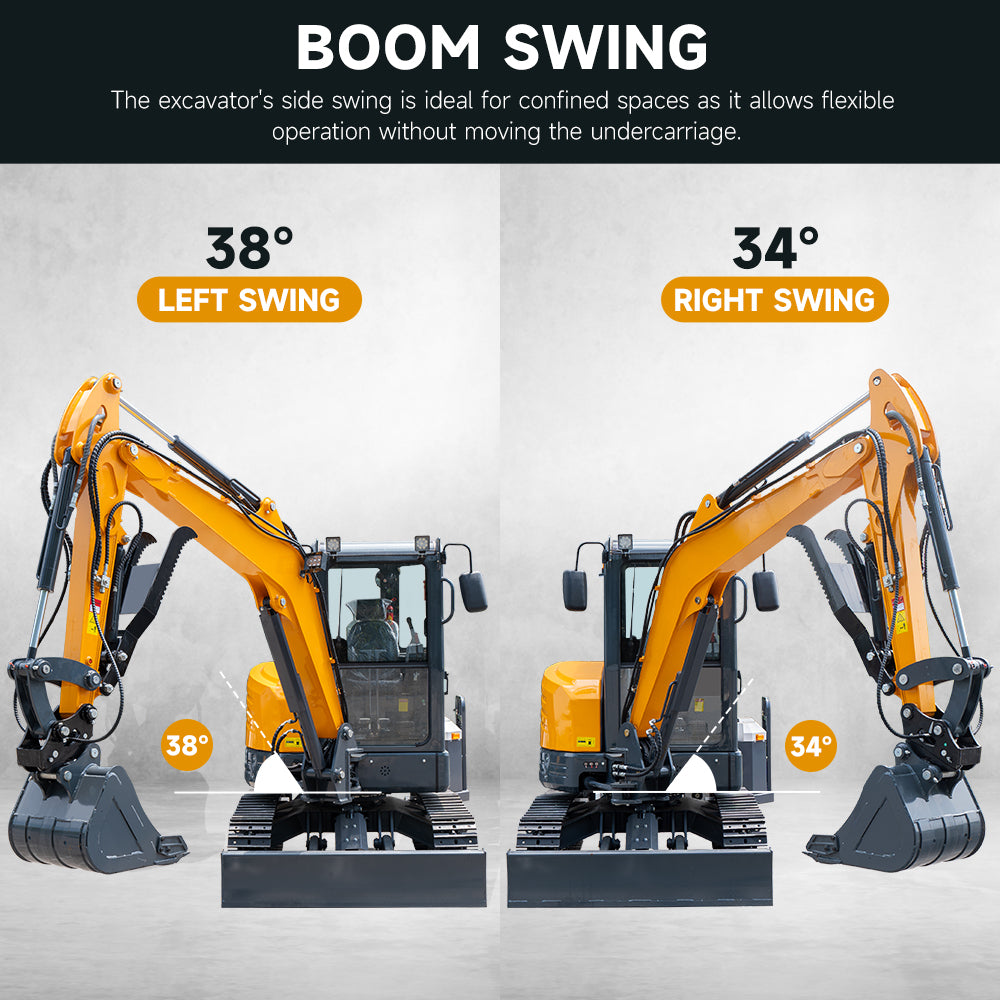

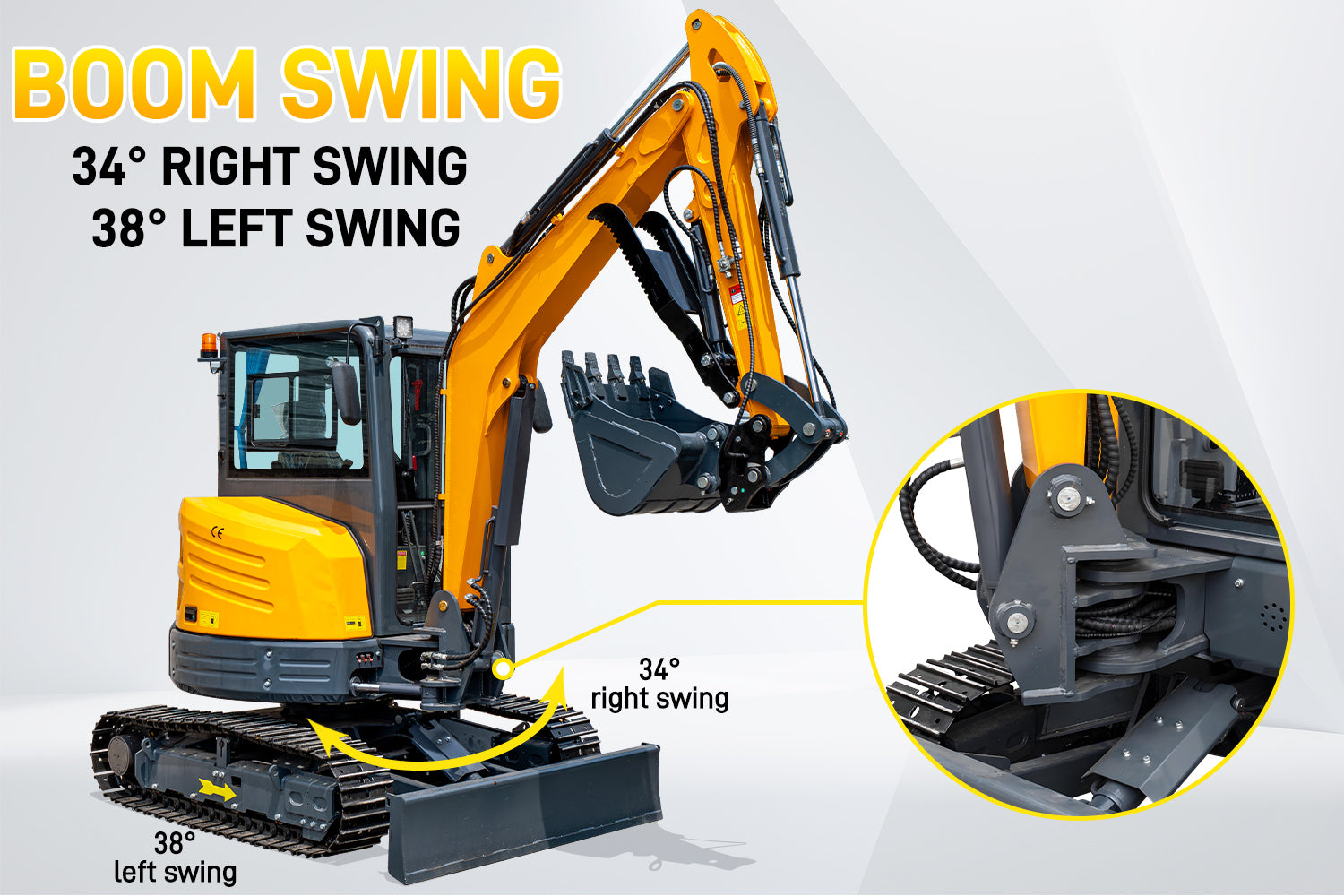

Powerful Boom Swing

Our 3.5-ton mini excavator is equipped with a powerful 38° left swing and 34° right swing function, especially suitable for working in narrow spaces. You don’t need to constantly adjust the machine to work in those hard-to-reach areas. This kind of flexibility can make your work more comfortable and improve your working capability.

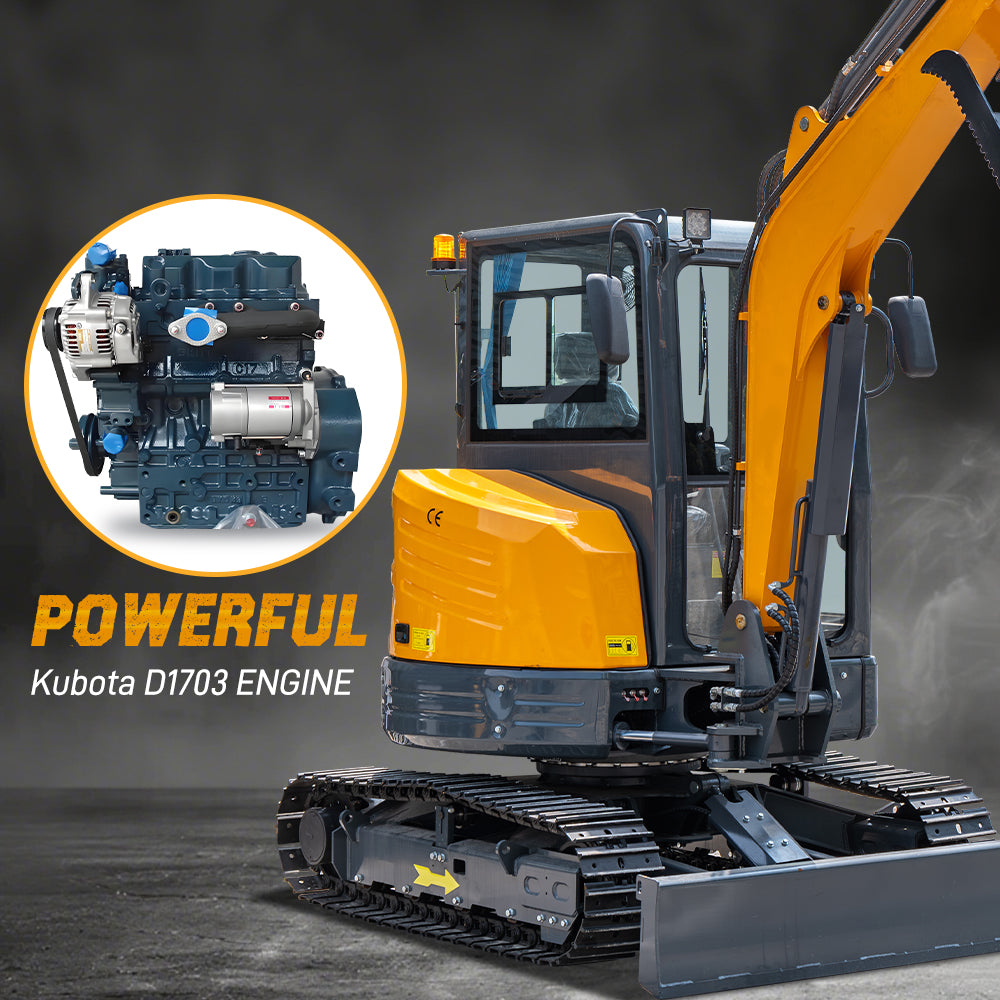

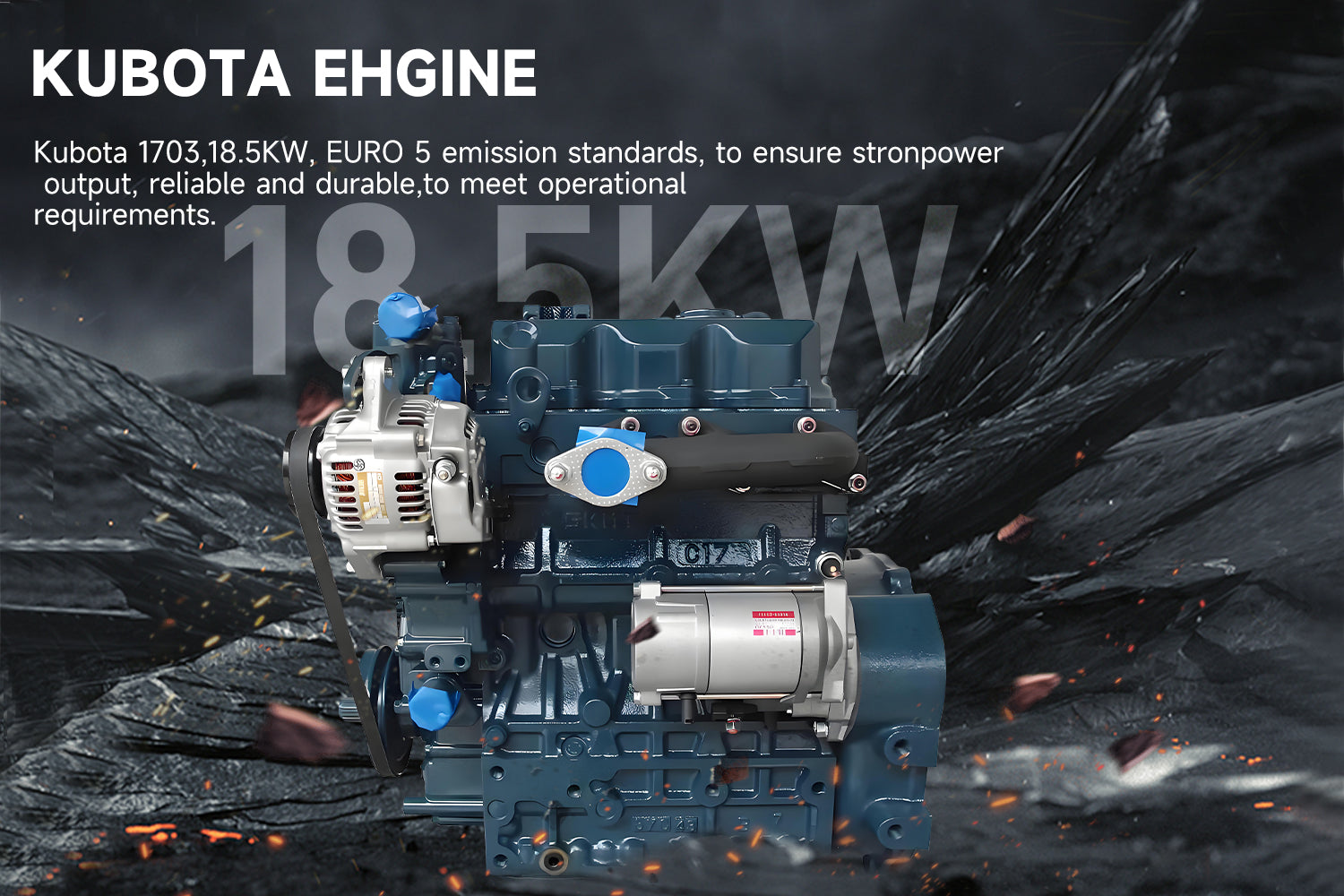

Kubota Efficient Engine

This 3.5-ton mini excavator is equipped with a Kubota D1703 diesel engine, providing ample power, capable of delivering 25 HP (18.5 kW) and 97 Nm peak torque, and optimized through a 1.647L displacement and 23:1 compression ratio to fully achieve fuel efficiency. Within a 500-hour maintenance interval, it can greatly improve durability and reduce downtime. At the same time, it can also ensure continuous power and reliability in extreme environments.

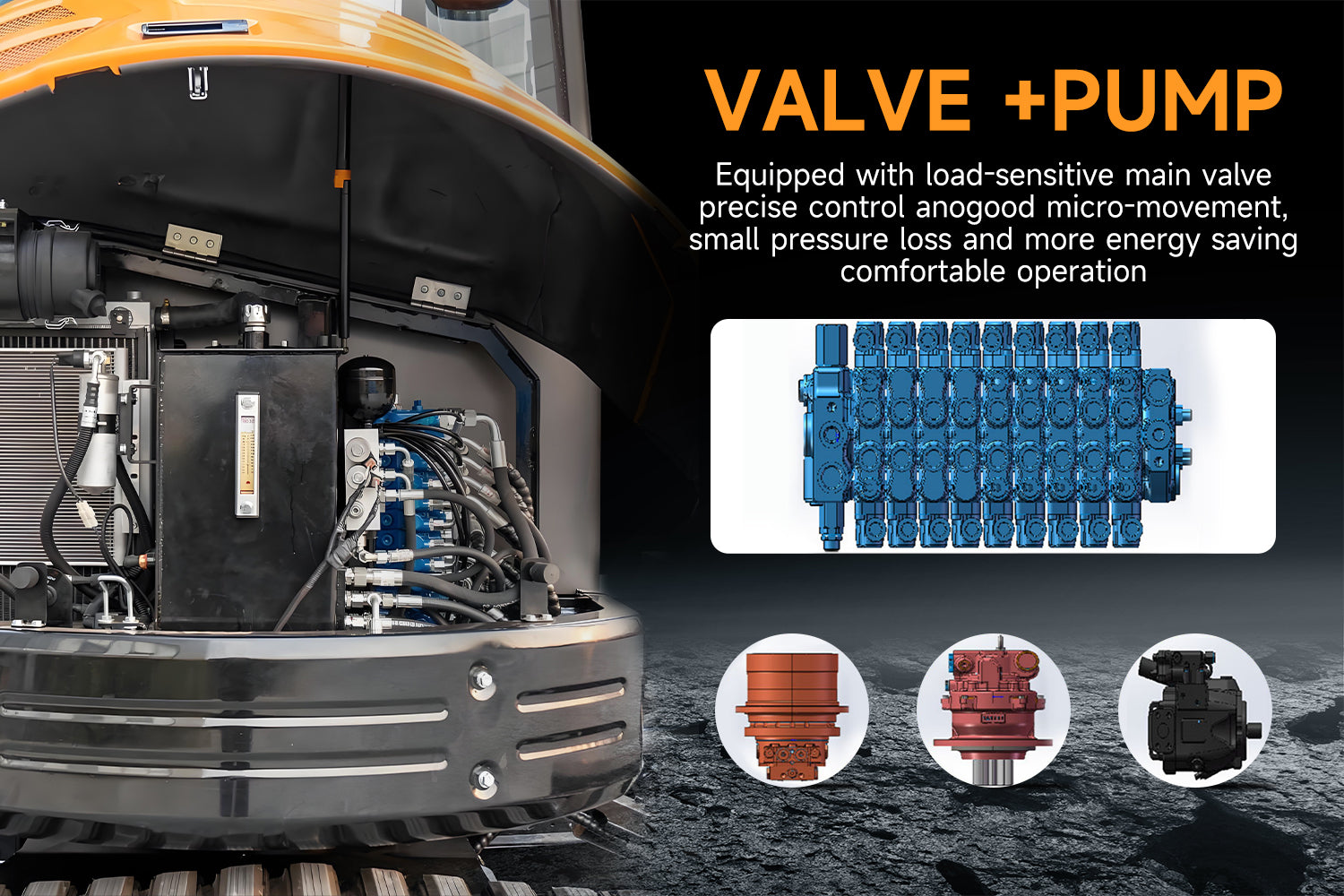

Load Sensitive Main Valve

This combination of hydraulic components can effectively improve the machine's performance and efficiency, while the piston pump can provide stable and strong output, and the load-sensing main valve intelligently adjusts the flow and pressure according to working conditions, achieving energy saving and efficiency improvement. Our 3.5-ton mini excavator has these features, which together enhance the machine's power, flexibility, and reliability.

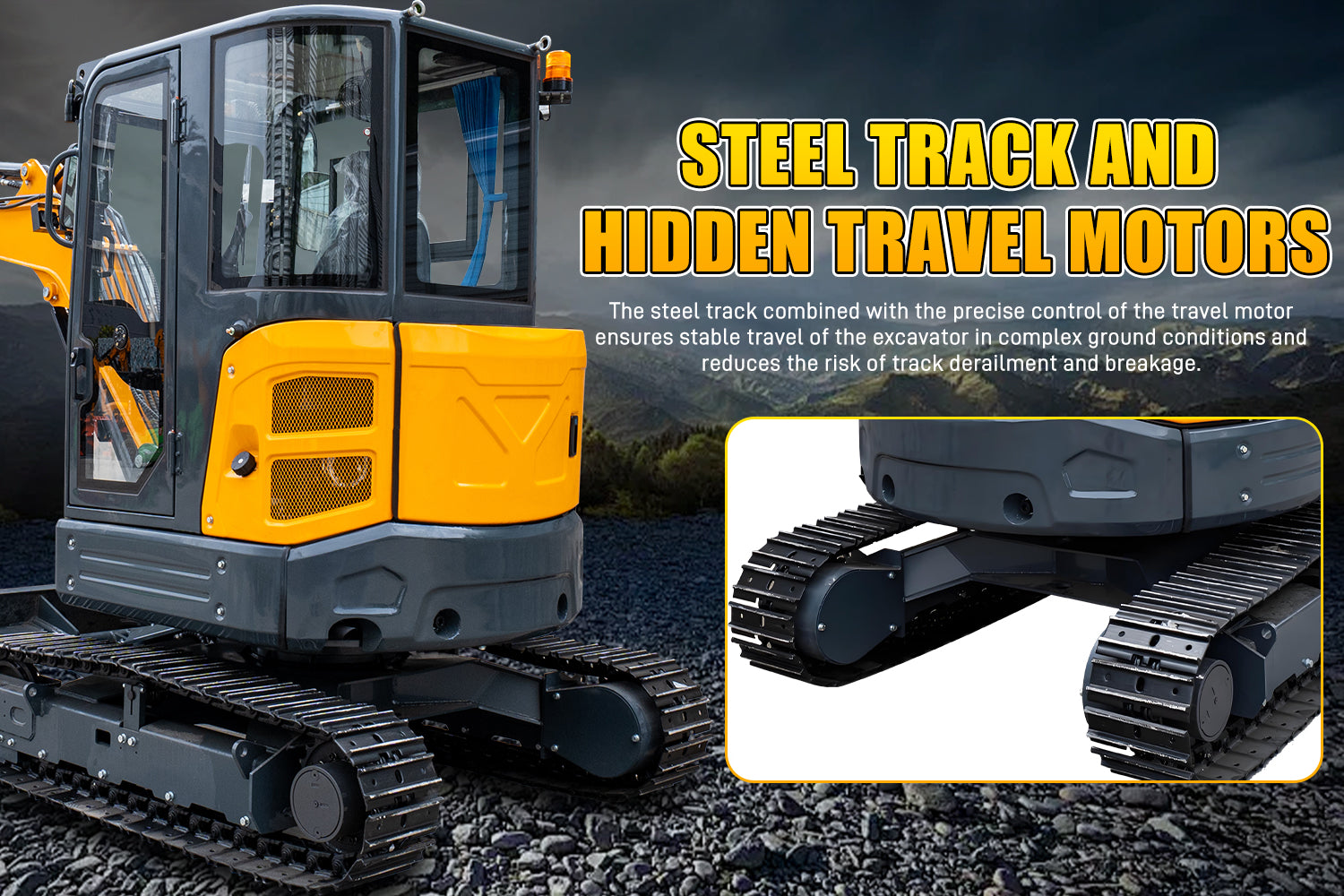

Hidden Travel Motors

Heavy-duty steel tracks are built for durability and reliability, providing maximum traction on rough terrain, while our hidden travel motor is protected inside the track frame, which can prevent damage and extend service life.

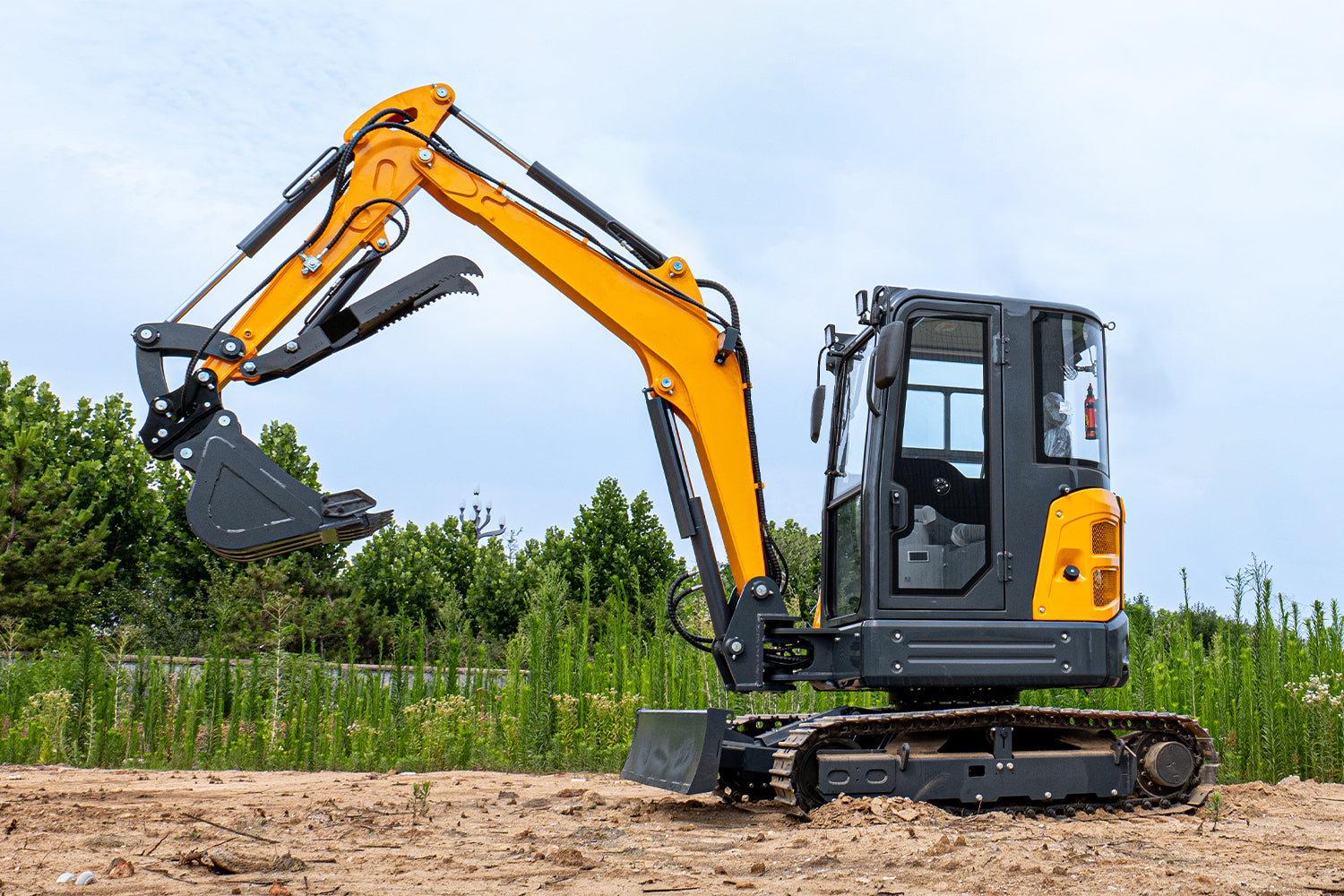

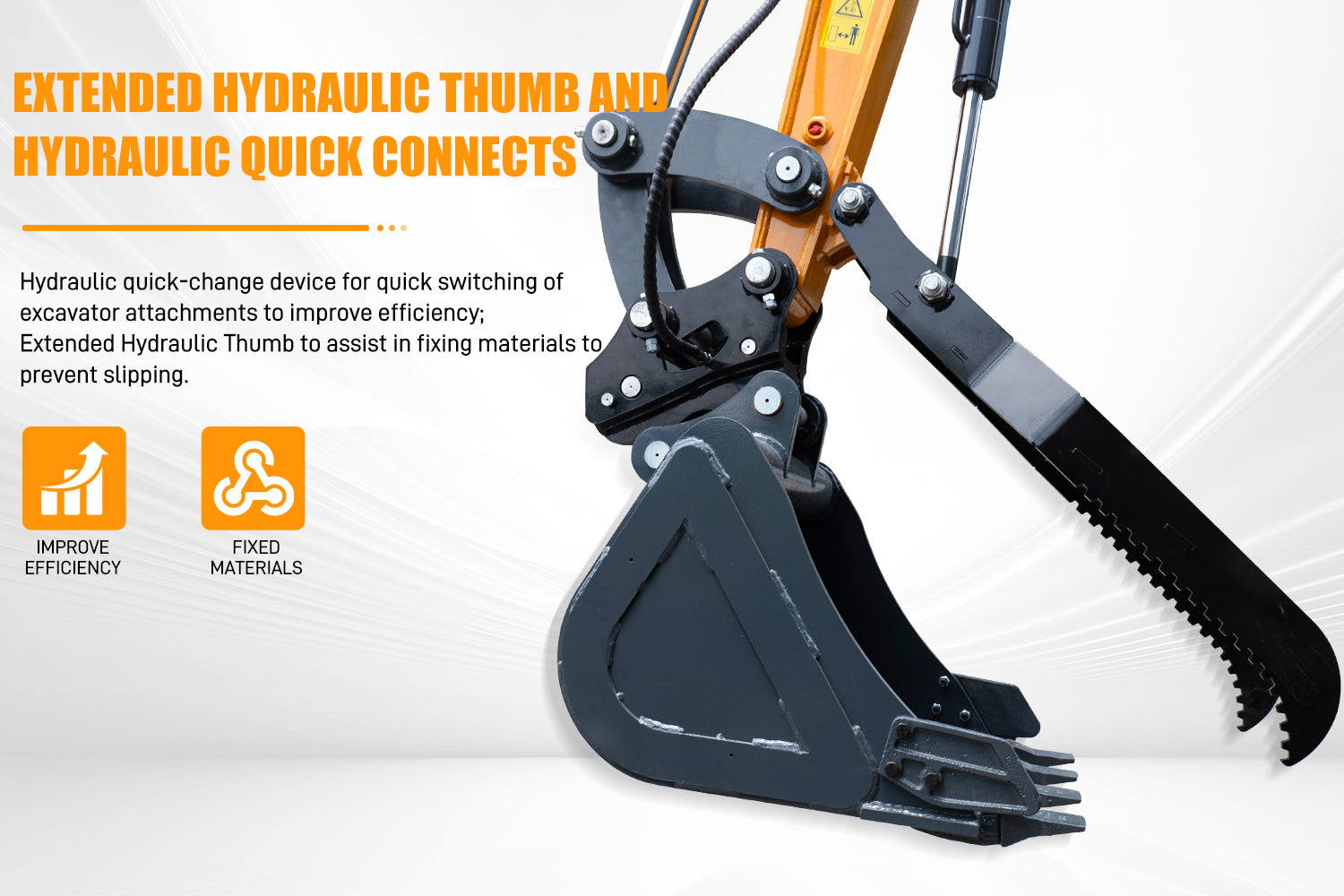

Extended Hydraulic Thumb

The matched extended hydraulic thumb clamp can enhance the versatility of the mini excavator, while it can grab large or irregular objects, and our hydraulic quick coupler allows you to switch between different attachments in seconds without leaving the cab, perfectly achieving faster, safer, and more efficient operations.

3.5 Ton Mini Excavator Specifications

Machine size
- Total length/transportation length (A): 5029mm
- Total width (B): 1720mm
- Upper width (D): 1554mm
- Total height (shed roof/cab roof) (C): 2580mm
- Standard track shoe width (F): 300mm
- Minimum ground clearance (H): 319mm
- Tail turning radius (I): 885mm
- Track ground length (J): 1645mm
- Track length (K): 2150mm
- Bulldozer Ground height (R): 393mm
- Bulldozer digging depth (T): 461mm
Operating range
- Maximum digging height (a): 4938mm
- Maximum unloading height (b): 3376mm
- Maximum digging depth (c): 3106mm
- Maximum digging distance (d): 5175mm
- Minimum radius of turn (e): 2634mm
- Max. Height @ Min. Rotation Radius (f): 3716mm
Performance parameter
- Operating weight (KG): 3500kg
- Bucket capacity M^3: 0.12m³
- Rated power: 18.5KW/2200rpm
- Turning speed: 9r/min
- Climbing ability: 58%
- Bucket digging force: 30.4KN
- Bucket rod digging force: 18.2KN
Main parts
- Engine: Kubota D1703
- Valve pressure: 24MP
- Flow sharing main valve: HVSE-09-09-P270-BE212
- Pump displacement: 40cc
- Swash plate axial plunger variable pump: HP5V45/AV10RB2S2MGA-L1/1-HT1
- Travel speed: 4.2/2.4km/h
- Travel motor: Variable plunger motor
- Engine oil capacity: 5.1L
- Fuel tank: Capacity 50L
- Valve system flow: 79.2L/min
- Cooling system: Capacity 5.05L
- Pump Max. speed: 3250r/min
- Hydraulic oil tank: Capacity 55L
